Product Name: 1x8 Mini Optical Switch Wavelength: 850nm or 1260~1650nm
Control Model: Latching Or Non-latching Voltage Type: 3V or 5V
Connector: Customized

Mini Size 1x8 Opto-Mechanical Optical Switches 8x1 Latching Fiber optic Switch



Mini 1x8 Mechanical Optical Switch

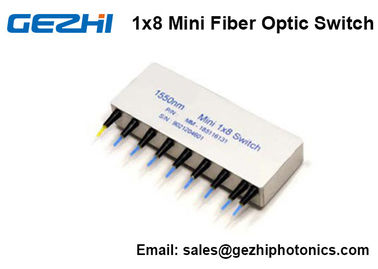

GEZHI Series Mini 1x8 fiber optic switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved by using a patent pending opto-mechanical configuration activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed.



The switch has integrated electrical position sensors, and the new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.




Features                                                                       Application

  • Unmatched                                                                   Low Cost Channel Blocking

  • Low Optical Distortions                                                 Configurable Add/Drop

  • High Isolation                                                                System Monitoring

  • High Reliability                                                               Instrumentation

  • Epoxy-Free                                                                   Optical Path



Performance

1x8 Mini Switch Unit Min Typical Max
Operation Wavelength nm 1260 ~ 1610nm
Insertion Loss 1 dB 0.5 0.8 1.2
Wavelength Dependent Loss dB   0.2 0.4
Polarization Dependent Loss dB 0.05 0.1 0.15
Return Loss dB >55
Cross Talk dB >50
Switching Time ms   3 10
Repeatability / <±0.05
Operating Voltage VDC 3V or 5V
Voltage Pulse Width (Latching) ms Typical: 20
Operating Current³ Latching mA <26
Non-Latching <36
Switching Type / Latching / Non-Latching
Operating Temperature 2 / -5~+70
Optical Power Handling mW Typical: 300mW Max:500mW
Storage Temperature -40~+85
Fiber Type / SMF-28
Package Dimension mm 67L x 25W x 10H





Electrical Driving

Latching

Optcial Path Relay Electrical Drive Status Sensor
Pin 1 Pin 8 Pin 2-3 Pin 3-4 Pin 5-6 Pin 6-7
Input -> Port 1 Relay 1 5V Pulse GND Open Close Close Open
Relay 2,3,4,5,6,7 N/A N/A -- -- -- --
Input -> Port 2 Relay 1 GND 5V Pulse Close Open Open Close
Relay 2 5V Pulse GND Open Close Close Open
Relay 3,4,5,6,7 N/A N/A -- -- -- --
Input -> Port 3 Relay 1, 2 GND 5V Pulse Close Open Open Close
Relay 3 5V Pulse GND Open Close Close Open
Relay 4,5,6,7 N/A N/A -- -- -- --
Input -> Port 4 Relay 1,2,3 GND 5V Pulse Close Open Open Close
Relay 4 5V Pulse GND Open Close Close Open
Relay 5,6,7 N/A N/A -- -- -- --
Input -> Port 5 Relay 1,2,3,4 GND 5V Pulse Close Open Open Close
Relay 5 5V Pulse GND Open Close Close Open
Relay 6,7 N/A N/A -- -- -- --
Input -> Port6 Relay 1,2,3,4,5 GND 5V Pulse Close Open Open Close
Relay 6 5V Pulse GND Open Close Close Open
Relay 7 N/A N/A -- -- -- --
Input -> Port7 Relay 1,2,3,4,5,6 GND 5V Pulse Close Open Open Close
Relay 7 5V Pulse GND Open Close Close Open
Input -> Port8 Relay 1,2,3,4,5,6,7 GND 5V Pulse Close Open Open Close



Non-Latching

Optcial Path Relay Electrical Drive Status Sensor
Pin 1 Pin 8 Pin 2-3 Pin 3-4 Pin 5-6 Pin 6-7
Input -> Port 1 Relay 1 5V Pulse GND Open Close Close Open
Relay 2,3,4,5,6,7 No Power Close Open Open Close
Input -> Port 2 Relay 2 5V Pulse GND Open Close Close Open
Relay 1,3,4,5,6,7 No Power Close Open Open Close
Input -> Port 3 Relay 3 5V Pulse GND Open Close Close Open
Relay 1,2,4,5,6,7 No Power Close Open Open Close
Input -> Port 4 Relay 4 5V Pulse GND Open Close Close Open
Relay 1,2,3,5,6,7 No Power Close Open Open Close
Input -> Port 5 Relay 5 5V Pulse GND Open Close Close Open
Relay 1,2,3,4,6,7 No Power Close Open Open Close
Input -> Port 6 Relay 6 5V Pulse GND Open Close Close Open
Relay 1,2,3,4,5,7 No Power Close Open Open Close
Input -> Port7 Relay 7 5V Pulse GND Open Close Close Open
Relay 1,2,3,4,5,6 No Power Close Open Open Close
Input -> Port8 Relay 1,2,3,4,5,6,7 No Power Close Open Open Close



Dimension

Mini Size 1x8 Opto-Mechanical Optical Switches 8x1 Latching Fiber optic SwitchMini Size 1x8 Opto-Mechanical Optical Switches 8x1 Latching Fiber optic SwitchMini Size 1x8 Opto-Mechanical Optical Switches 8x1 Latching Fiber optic Switch



Ordering Information

Type Wavelength Control Model Volatage Fiber Type Fiber Diameter Fiber Length Connector

18=1x8

81=8x1

1=1060nm

2=C+L

3=1310

4=1410

5=1550

35=1310&1550

85=850nm

B=1260~1620

X=Special

L=Latching

N=Non-Latching

3=3V

5=5V

1=SMF-28

X=Special

25=250um

90=900um

X=Others

1=0.5m

2=1m

3=1.5m

X=Others

0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=ST//UPC

6=ST/APC

7=LC/UPC

8=LC/APC
